TRACKIR 5

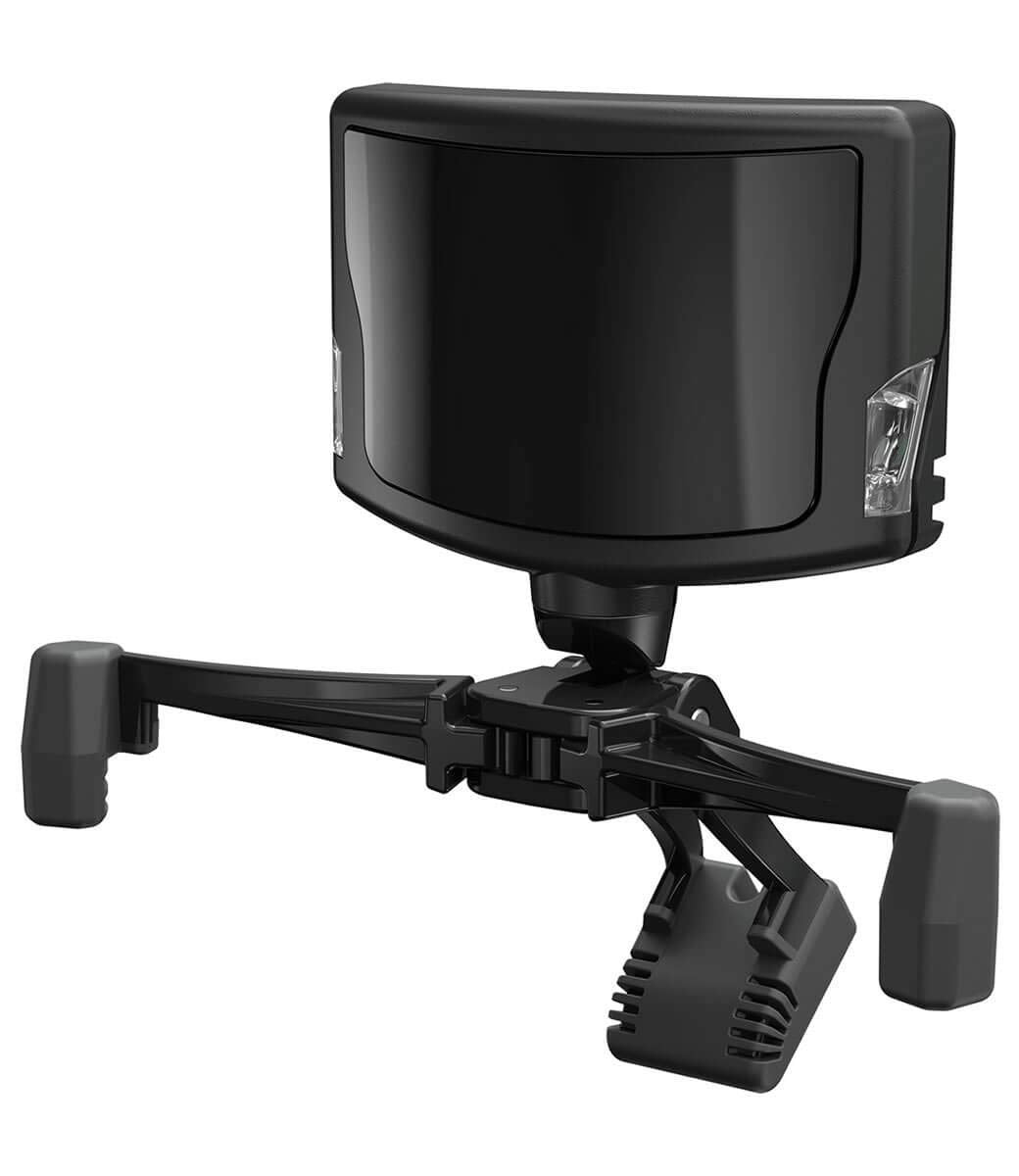

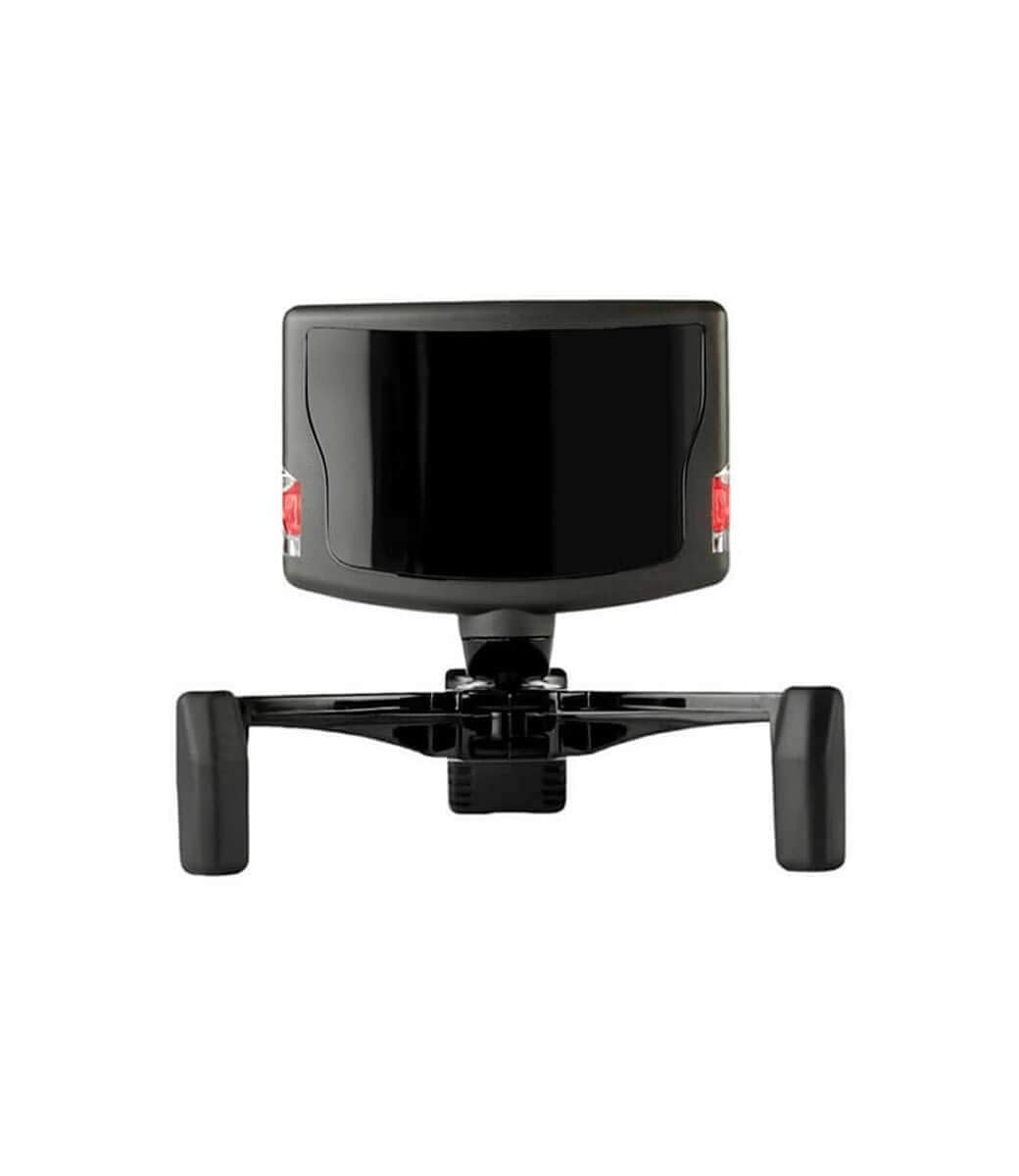

TrackIR is a head tracking input device designed for use with gaming and simulation PC titles. It is an infrared camera that tracks the position and orientation of your head, and then sends that data to any of the 100+ TrackIR Enhanced games and simulations.
The TrackClip, included with every TrackIR 5 purchase, attaches to the brim of a hat or visor and has three retro-reflective markers that direct infrared light back to the camera. The TrackClip Pro, which attaches to most PC headsets, comes with active LED markers and is useful when you need to track from further away.
6 DEGREES OF FREEDOM
TrackIR tracks all six directions a player’s head can move in 3D space, with each direction on a separate axis so that actual movements are accurately linked to the in-game view.
PRECISE TRACKING
With the ability to focus on 1/150th of a pixel, TrackIR provides the most precise head tracking solution on the market.
51.7°
FIELD OF VIEW
640 × 480
RAW RESOLUTION
120 FPS
SAMPLE RATE
9 MS
RESPONSE TIME
DESIGNED
FOR GAMERS
Using the software’s advanced settings, you can adjust each axis individually to tailor the sensitivity and speed to fit your needs. Or use one of several pre-configured profiles to get started right away. By giving you control of the experience, TrackIR enables you to unlock the full potential of the game.
FULLY ADJUSTABLE
A magnetically attached base facilitates an easy and secure setup, with adjustable legs to fit any monitor.
TECH SPECS
- Raw Sensor Resolution: 640 × 480
- Reporting Resolution: 96,000 × 72,000
- Field of View: 51.7°
- Resolution/
|Horizontal Degree: 1850 subpixels/degree - Sample Rate: 120 fps
- Size (without base): 2" × 1.5" × 0.57"
- Weight: 1.8 oz
- Response Time: 9 ms
- Connection: USB
- Cable Length: 6 feet
In the Box
- TrackIR 5 hardware
- TrackClip
- Quick Start Guide (view PDF)
System Requirements
- Available USB port
- Windows Vista or newer
- 60 Megabytes of free hard drive space
